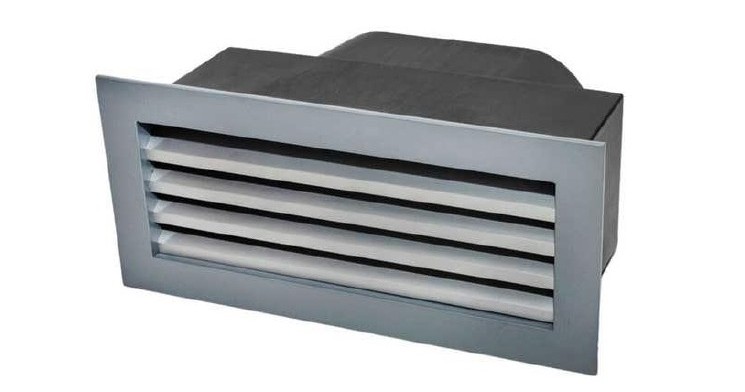

This innovative aluminium wall vent replaces a standard brick H76 x W230 x D110mm. The slimline design provides for a robust, weatherproof and stylish method of venting via an external wall.

Louvres protect from weather and the 2mm aluminium mesh keeps pests out and provides a BAL-40 bushfire rating.

This vent has a face size of 273mm (w) x 127mm (h) with an oval neck that allows for easy attachment of flexible foil or semi-rigid ducting. Ideal for venting fans or range hoods with 150mm diameter ducting and is more durable than plastic alternatives. This Louvre Single Brick Wall Vent can be used in a variety of types of walls including brick and weatherboard with a box total depth of 190mm and a 90mm long neck with a 100mm rectangular box depth for the adapter to sit securely between the bricks. The face protrudes at 4mm.

• Features an attractive slimline design that is easy to install – replaces a standard brick
• Ideal for venting exhaust fans or range hoods – or for sub-floor ventilation with or without a fan
• Compatible with both 150mm flexible foil and semi-rigid ducting
• ABS adapter with galvanised support frame attaches to anodized aluminium vent face
• Compliant with the fire rating requirements of AS3959-2009 up to BAL-40
• Has a 2mm aperture aluminium mesh for protection from insects and rodents
