FasciaFlo® is an innovative fascia ventilation solution designed to eliminate unsightly roof vents while ensuring compliance with NCC 2022 Section 10.8.2 (Exhaust Systems). Engineered for domestic dwellings with or without eaves, it provides an efficient and visually appealing alternative for venting extraction fans. Proudly made in Australia, FasciaFlo® is BAL-rated up to BAL 40 and seamlessly integrates with all roof types.
Key Benefits
Enhanced Visual Appeal – Eliminates exposed roof vents, with colour-matched cover plates that blend seamlessly with the fascia.
Reliable & Leak-Free Design – Reduces the risk of roof leaks by eliminating unnecessary roof penetrations.
Simplified Installation – Installed by fascia and gutter fitters, requiring fewer fixings than traditional roof vents. Efficient Ducting – Allows for shorter, more effective duct runs, reducing the need for excessive flexible ducting.
Versatile Compatibility – Suitable for homes with or without eaves and compatible with all roof types.
BAL Compliant – Rated up to BAL 40, featuring a stainless-steel mesh that meets AS3959:2018 bushfire requirements.
How It Works
FasciaFlo® consists of two key components:
Colour Range
FasciaFlo® is the perfect alternative to traditional roof vents, ensuring compliance, durability, and a sleek, modern look for any home and is proudly made in Australia.
Benefits
Enhanced Visual Appeal
Removal of unsightly vent tubes on the roof that are visible from the exterior. FasciaFlo® Cover plates can be colour matched to the fascia, seamlessly blending in and reducing visual impact.
Minimise Risk, Maximise Reliability
Reduces the risk of roof leaks with fewer roof penetrations and an easier, safer installation process. By positioning the flexible duct between the upper and lower truss chords rather than high within the roof frame, you can gain easy and safe access to the vent duct as opposed to a traditional roof vent.
Simplified Installation
Requires fewer fixings than traditional roof vents, making installation quicker and more efficient.
Duct Efficiency
Shorter ducting runs are possible since most sanitary compartments are located near outer walls, reducing the need for lengthy flexible ducting.
Compatibility
Can be installed to domestic dwellings with eaves/no eaves, as well as all roof types.
BAL Rated
Rated to BAL 40
Colour Range
The FasciaFlo Cover Plate is powdered coated in all the Standard Colorbond colours.
The FasciaFlo Chamber is powered coated in Monument only.
How it Works

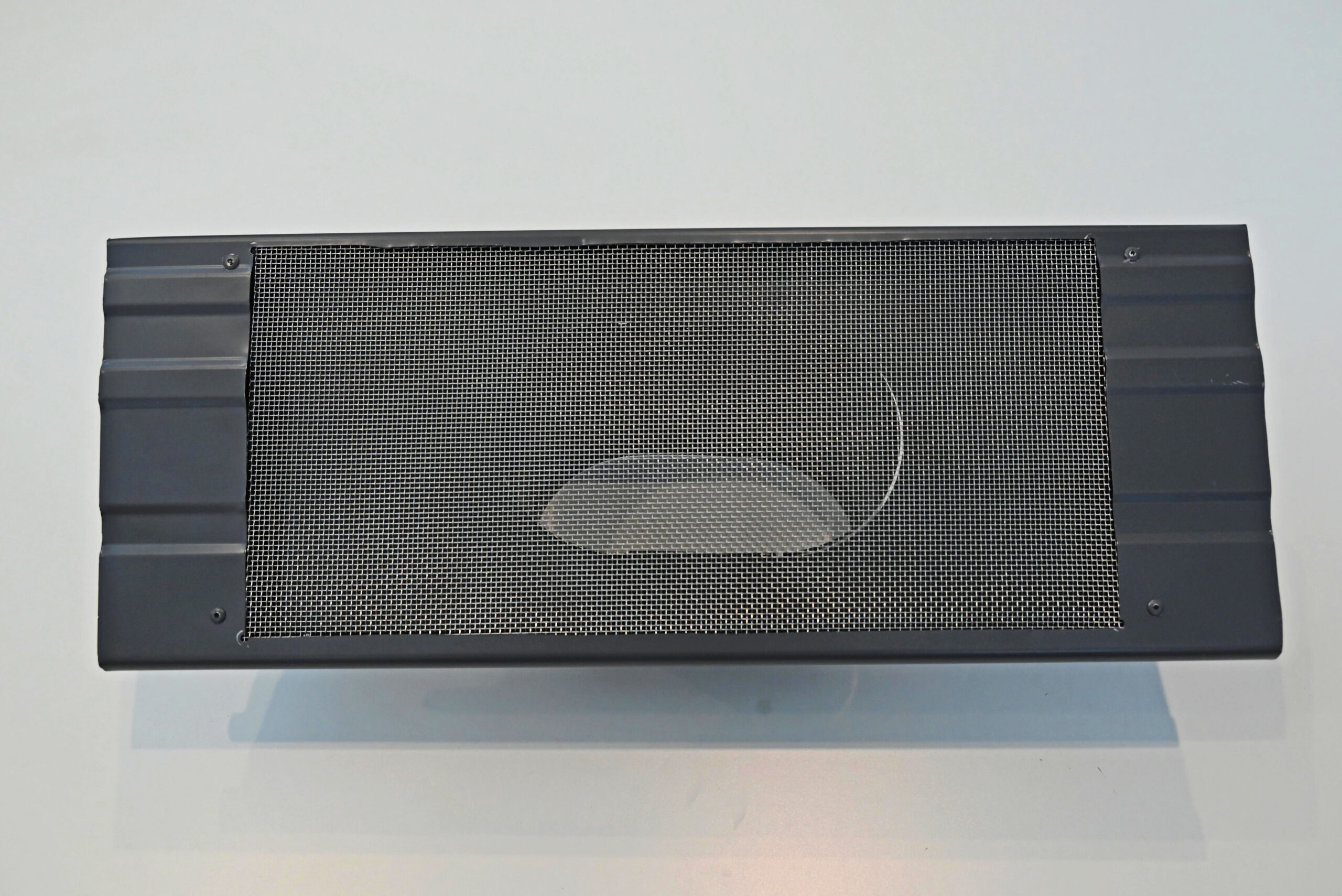

The FasciaFlo® Exhaust System Ventilation consists of two components, the ‘Duct Chamber’ and the ‘Vent Cover Plate’.
The duct chamber is inserted into the back of the fascia and sits within the perimeter of the fascia profile and provides the mechanism for attaching the flexible duct from the exhaust fan. The chamber is fitted with a stainless-steel mesh with apertures of 2mm to meet the requirements of AS3959:2018, section 8.6.6(e) and section 3.6.1 for use on BAL 12.5 – BAL 40. The vent cover plate is installed to the outer face of the fascia and provides aesthetic completion of the installation.
FasciaFlo® has been designed to be connected to a single exhaust fan.
