MULTICLAD®

Lightly ribbed walling





MULTICLAD®

Lightly ribbed walling





Description

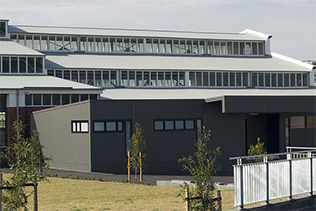

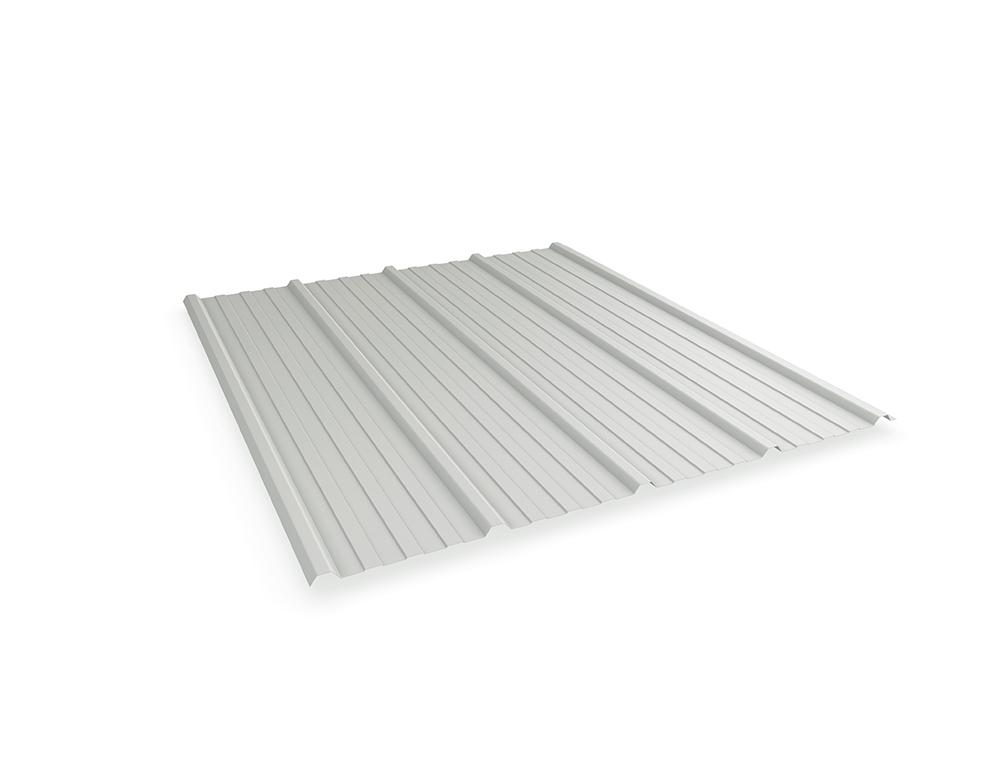

MULTICLAD® is an attractive trapezoidal multi-ribbed profile. MULTICLAD® walling is usually used where an inexpensive, quick to install cladding is desirable, such as garages, carports and sheds. The speed of installation also makes it popular for commercial and industrial projects such as warehouses, showrooms and retail premises. The long clean lines of MULTICLAD® walling can be installed either vertically or horizontally.

  • Available in a range of pre-painted COLORBOND® steel colours and unpainted ZINCALUME® steel
  • Attractive trapezoidal multi-ribbed profile
  • 840mm wide cover makes it quick and easy to install





Colour Range

Categories

Filter

Filter by finish

Standard Colour Range

Basalt®

Bluegum®

Classic Cream™

Cottage Green®

Deep Ocean®

Dover white™

Dune®

Evening Haze®

Gully®

Ironstone®

Jasper®

Manor Red®

Monument®

Night Sky®

Pale Eucalypt®

Paperbark®

Shale Grey™

Southerly®

Surfmist®

Wallaby®

Windspray®

Woodland Grey®

Unpainted Steel Range

ZINCALUME® steel

UniCote® Lux Steel Samples - These colours are only available in Stramit K-Panel Wall Sheeting

African Wenge

Ashwood

Corten Red

Maple

Metal Stone

Midnight Matte

Pentagon

Saffiano

Silver Quartz

Spectrum

Weathered Iron

Zinc Graphite

Specifications

BMT

0.35mm and 0.42mm



Cover

840mm



Lengths

Available in custom cut lengths to suit the application requirements.



Tolerance

Length: + 0mm, – 15mm
Cover Width: + 4mm, – 4mm



Material Specification
  • Next generation ZINCALUME® zinc/aluminium/magnesium alloy-coated steel complies with AS 1397:2011 G550, AM125 (550 MPa minimum yield stress, 125 g/m2 minimum coating mass)
  • COLORBOND® steel complying with AS/NZS 2728:2013 and the steel base is an aluminium/zinc/magnesium alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)
  • COLORBOND® Stainless steel for severe and coastal environments. The painting complies with AS/NZS 2728:2013 and the steel base is stainless steel complying with AISI/ASTM Type 430; UNS No. S43000. Subject to enquiry



Mass – pre-painted steel

BMT 0.35mm: 3.33 kg/m2

BMT 0.42mm: 3.95 kg/m2
